MG Smith & Son

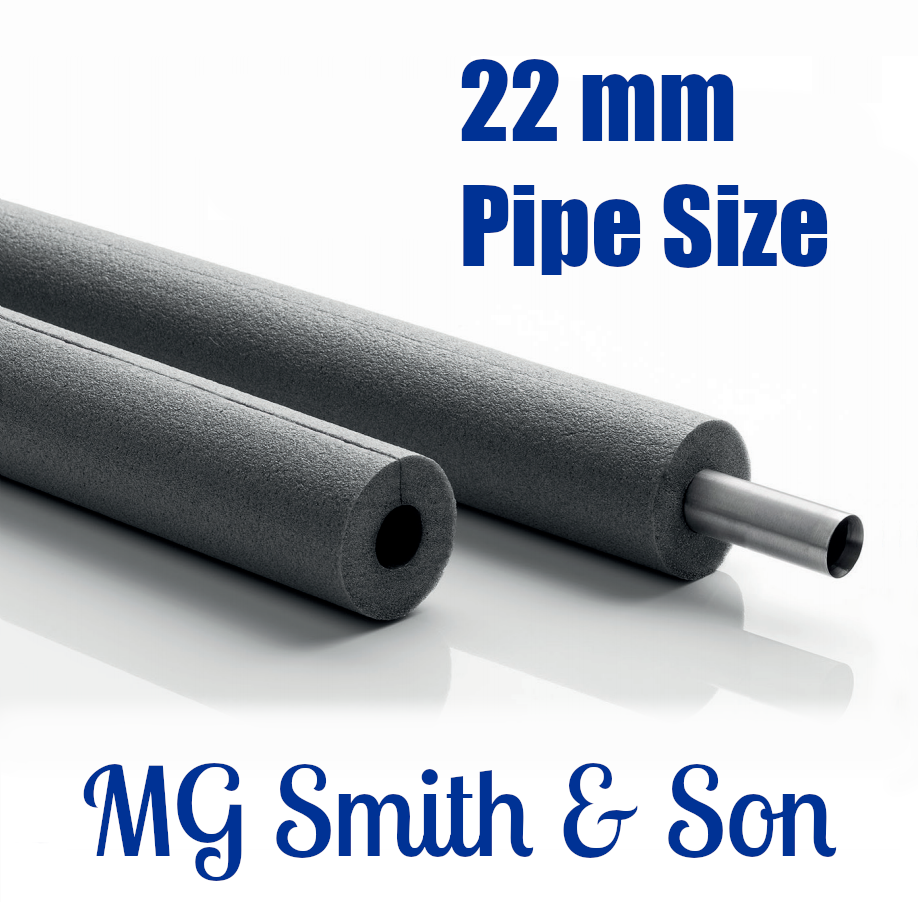

22mm Bore Climaflex Pipe Insualtion
22mm Bore Climaflex Pipe Insualtion
Each order will be sent in 1 metre sections.
BS 7523:1991 Type A
Official Climaflex brand closed cell polyethylene pipe insulation with a side scored for ease of installation. This item is intended to be used on cold and hot water pipes.
Flexible pipe insulation manufactured by extrusion of expanded polyethylene material polyethylene insulation (Class E fire rating combustible material)
Totally CFC and HCFC free.
Global warming potential specified by the International Panel on Climate Change requires a reading of less than 5 Climaflex has a reading of zero.
Relevant sizes exceed water byelaw 49 requirements.
Improved thermal conductivity available allows compliance with water byelaw 49 by utilising thinner wall thicknesses to ease application in confined areas.
Improved thermal conductivity grade approved by BSI
Ideal for thermal insulation of pipe work in domestic situations.
Climaflex is, rot proof odourless and non hydro scopic, will not sustain vermin and will not encourage growth of fungi, or mould and it is chemically neutral.
Specifications
Mean Density - 35kg/m3
Temperature range - -50°C to +95°C
Thermal conductivity - 0°C - 0.034 W/mK, 20°C - 0.036 W/mk 40°C - 0.039 W/mK : DIN 52613
Fire classification - Combustible Material
Ozone resistance - Good
Thermal Transmittance U-valve - 9mm 2.86 W/m2 K, 13mm 2.20 W/m2 K, 19mm 1.65 W/m2 K, 25mm 1.53 W/m2K
Resistance to oils and grease - Good
Meets requirements of BS7523: 1991
Meets requirements for the thermal insulation of pipe work
Satisfies building regulations section L1
conforms to the requirements of BSEN806 and BS 8558:2011
1977 Specification for the use of thermal insulation materials.
